# How to create a network load balancer? **To create a Network Load Balancer, follow the steps below:** **Step 1:** [Login](https://customer.acecloudhosting.com/index.php?m=ace_product_register_addon\&action=login) to your account. **Step 2:** Navigate to **Networks** and then click on **Load Balancer**.

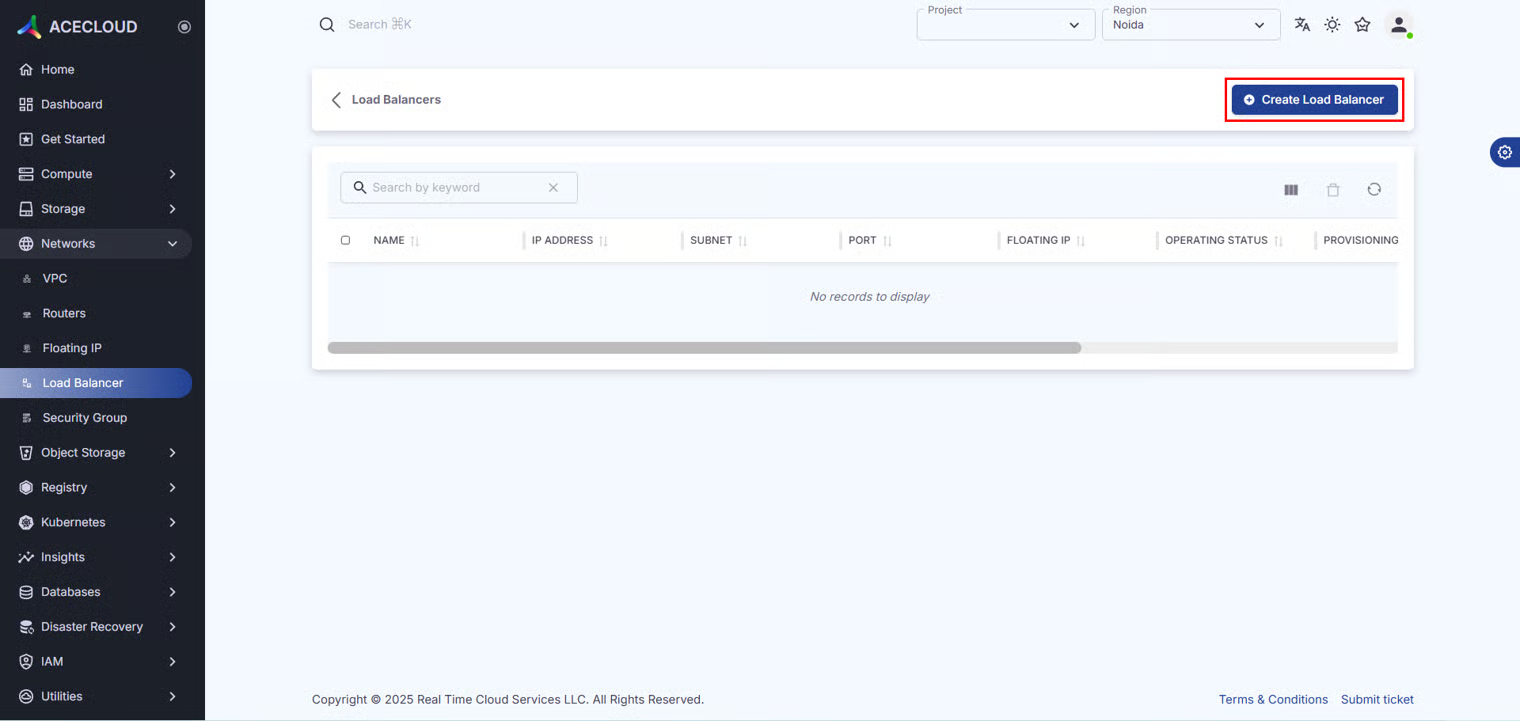

**Step 3:** Click **Create Load Balancer**.

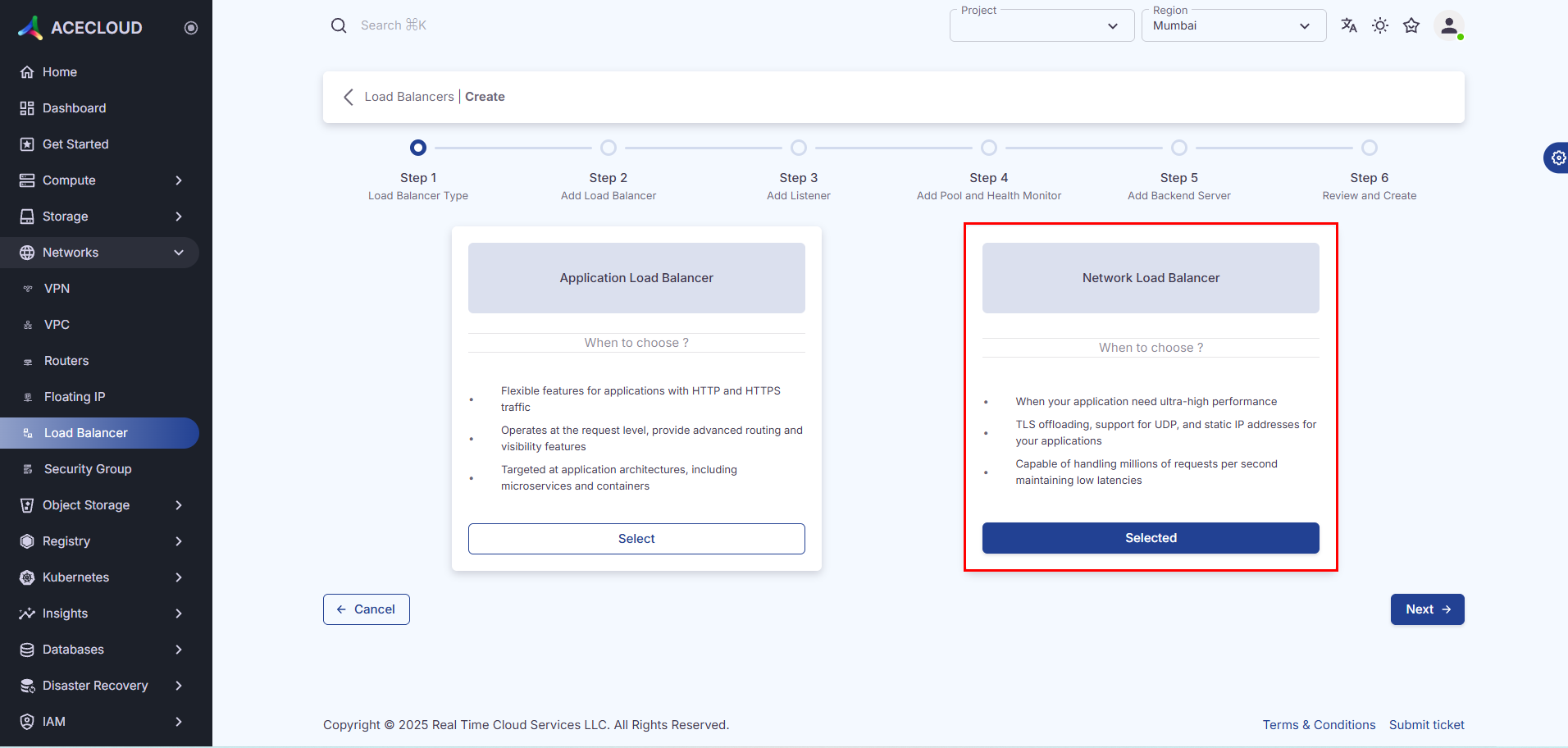

**Step 4:** Select **Network Load Balancer** and click **Next**.

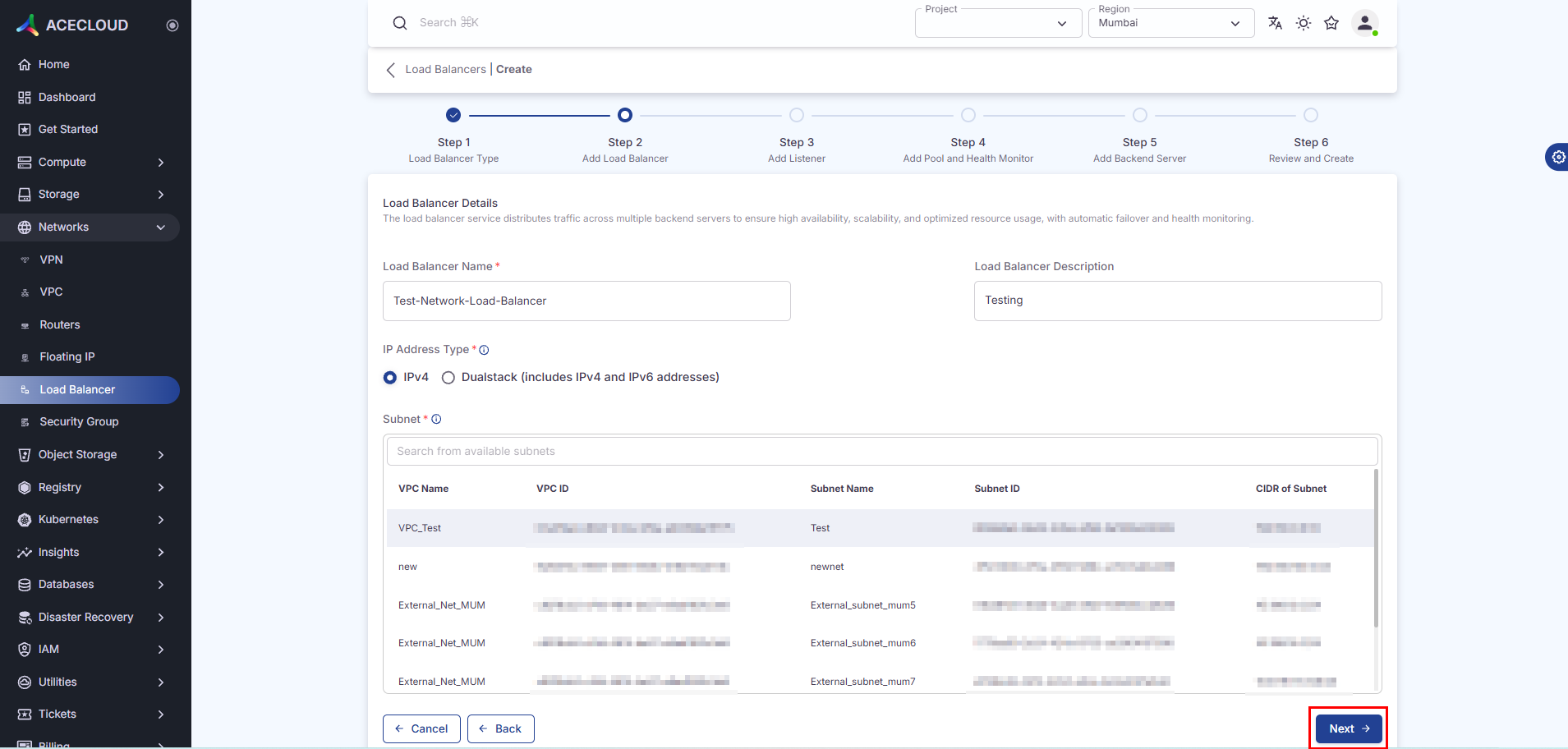

**Step 5:** Enter the **Basic Details** and click **Next**.
| **Field** | **Description** | | ----------------- | ---------------------------------------------- | | Name\* | Name of the Load Balancer | | Description | Description of the Load Balancer | | IP Address type\* | Select IP address type from IPv4 and Dualstack | | Subnet\* | Select a subnet from the available networks. | **Step 6:** Enter the **Listener Details** and click **Next.** **Note:** If you do not want to create a listener, disable the toggle and click **Next**.
| **Field** | **Description** | | ------------------------------ | ------------------------------------------------------------------------------------------------------------------------- | | Listener Name\* | Enter the name of the Listener. | | Listener Description | Enter the description of the Listener. | | Listener Protocol\* |

Select a protocol for the listener from the below options:

  1. TCP
  2. UDP
  3. SCTP

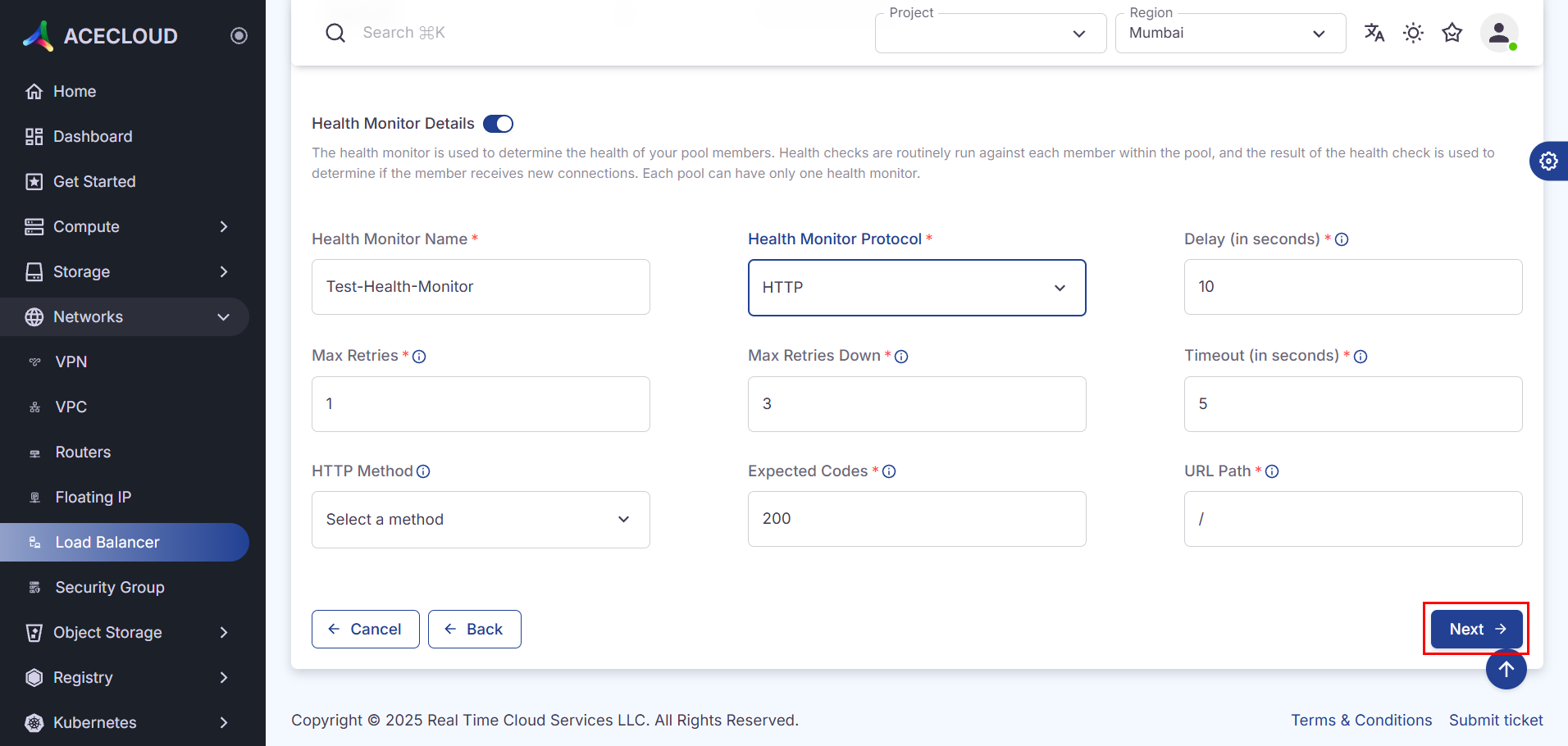

| | Listener Port\* | The protocol port number for the resource. The default is 1. | | Client Data Timeout (in ms) | Enter client inactivity timeout in milliseconds. The default is 50000. | | TCP Inspect Timeout (in ms) | Enter time, in milliseconds, to wait for additional TCP packets for content inspection. The default is 0. | | Member Connect Timeout (in ms) | Enter member connection timeout in milliseconds. The default is 5000. | | Member Data Timeout (in ms) | Enter member inactivity timeout in milliseconds. The default is 50000. | | Allowed CIDRs | Enter a list of IPv4, IPv6 or mix of both CIDRs. | | Connection Limit\* | The maximum number of connections permitted for this listener. Default value is -1 which represents infinite connections. | **Step 7:** Enter **Pool Details**, **Server Monitor Health** details, and click **Next.** **Note:** 1. If you have not created a **Listener**, you will not be able to create a **Pool** and **Monitor**. 2. If you have not created a **Pool**, you will not be able to create a **Monitor**. 3. If you do not want to create a **Pool** and **Monitor,** disable the toggle and click **Next**.
| **Field** | **Description** | | ------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Pool Name\* | Enter the name of the Pool. | | Pool Description | Enter the description of the pool. | | Pool Algorithm\* |

Select the load balancing algorithm for the pool from the below options:

  1. Least connections
  2. Round robin
  3. Source IP
| | Pool Protocol\* |

Select a protocol for the pool from the below options:

  1. HTTP
  2. HTTPS
  3. PROXY
  4. PROXYV2
  5. TCP
| | TLS Enabled | | | TLS Cipher String | Enter List of ciphers in OpenSSL format and it should be colon-separated. | | Session Persistence |

Select a JSON object specifying the session persistence for the pool from the below options:

  1. HTTP Cookie
  2. APP Cookie
  3. Source IP
| | Cookie Name\* | Enter the name of the cookie to use for session persistence. | | Monitor Name\* | Enter the name of the Health Monitor. | | Monitor Protocol\* |

Select a protocol for the health monitor from the below options:

  1. HTTP
  2. HTTPS
  3. PING
  4. TCP
  5. TLS-HELLO
  6. UDP-CONNECT
  7. SCTP
| | Max Retries Down\* | Enter the number of allowed check failures before changing the operating status of the member to ERROR. A valid value is from 1 to 10. The default is 3. | | Delay (in sec.)\* | Enter the interval, in seconds, between health checks. The default is 10. | | Max Retries\* | Enter the number of successful checks before changing the operating status of the member to ONLINE. The default is 1. | | Timeout (in sec.)\* | The time, in seconds, after which a health check times out. The default is 5. | | HTTP Method |

Select the HTTP method that the health monitor uses for requests from the below options:

  1. GET
  2. HEAD
  3. POST
  4. PUT
  5. DELETE
  6. TRACE
  7. OPTIONS
  8. PATCH
  9. CONNECT
| | Expected Codes\* | Enter the HTTP status codes expected in response from the member to declare it healthy. The default is 200. | | URL Path\* | Enter the HTTP URL path of the request sent by the monitor to test the health of a member. Must be a string that begins with a forward slash. The default URL path is /. | **Step 8**: Enter **the Backend Server** details and click **Next**. **Note:** 1. If you have not created a **Pool**, you will not be able to create **Backend Servers**. 2. If you do not want to create a **Backend Server,** disable the toggle and click **Next**.

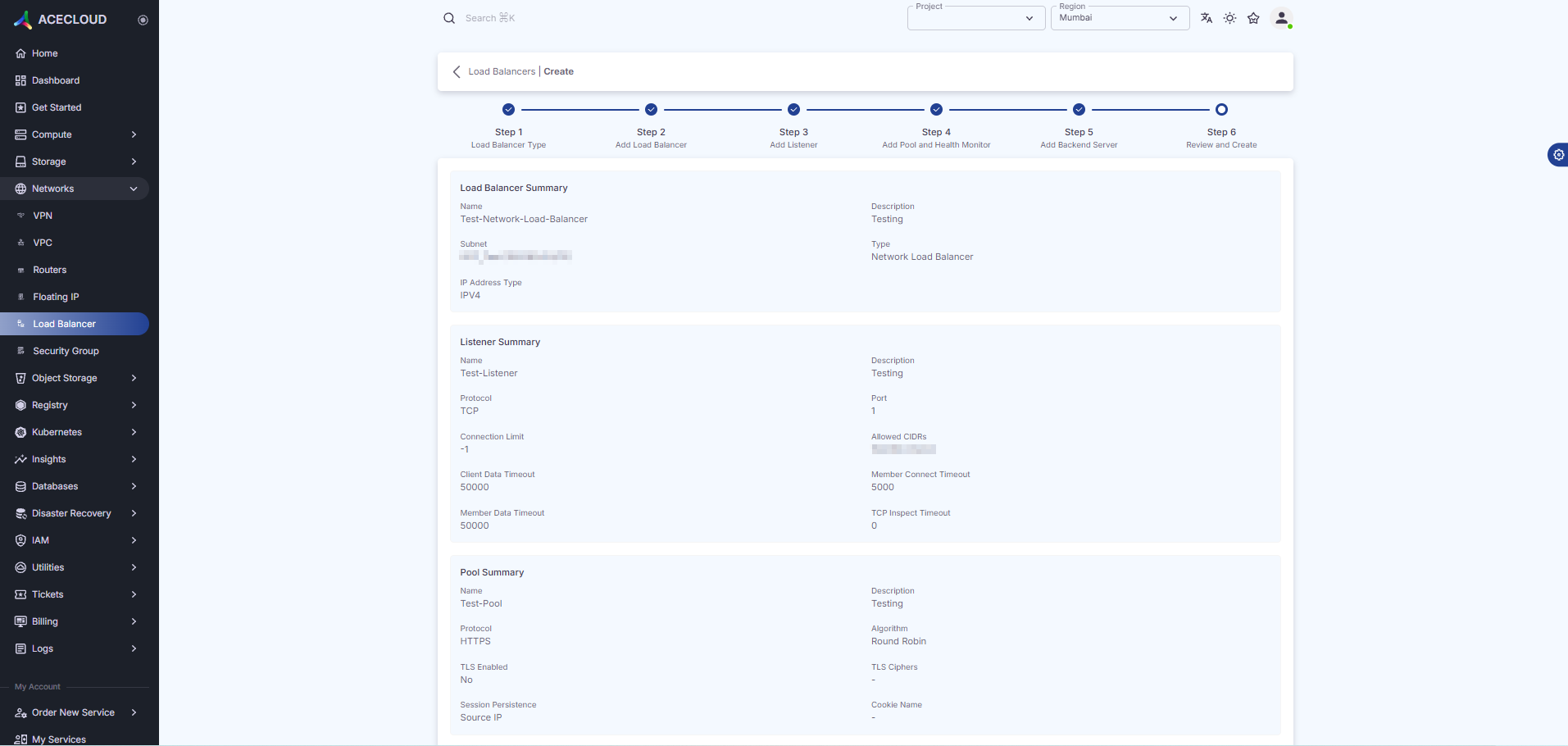

| **Field** | **Description** | | ----------------- | ------------------------------------------------------------------------------------------------------------------------------------- | | Add Servers\* | Select the servers from the dropdown. | | Specific IP | Enter the specific IP you want to Add and click on **Add** button. | | Name | Name of the server. | | IP Address | IP address of the server. | | Associated Subnet | Name of the subnet, associated with the server. | | Specific Port\* | Enter the specific port you want to add. | | Monitor Address | Enter an alternate IP address used for health monitoring a member. | | Monitor Port | Enter an alternate protocol port used for health monitoring a member. | | Weight | Enter the weight of a member determines the portion of requests or connections it services compared to the other members of the pool. | **Step 9:** Review your load balancer details and click on the **Create** button.
